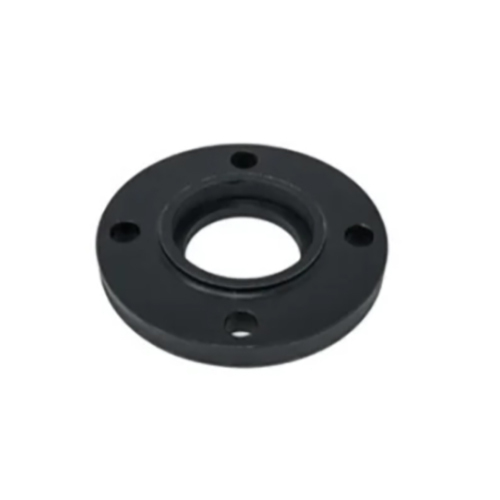

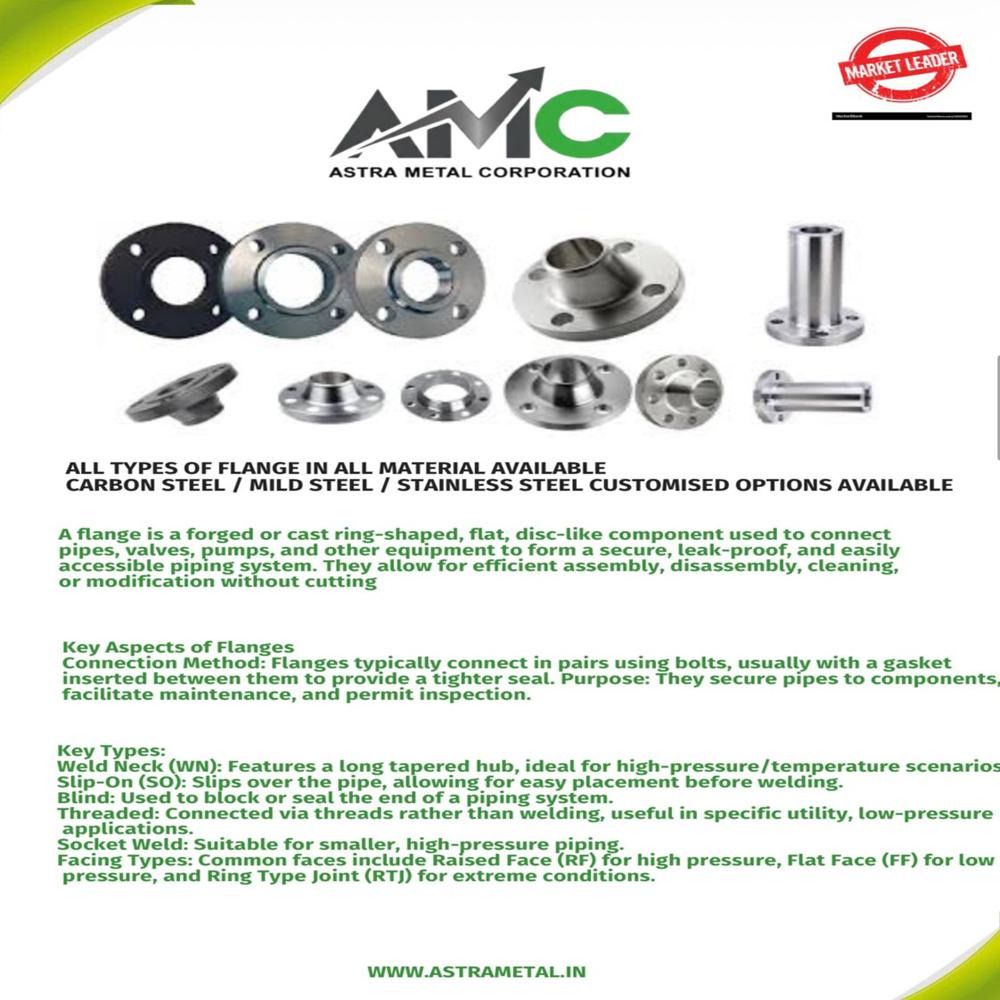

CS SWRF Flange

Name: CS SWRF Flange
Brand: ASTRA METAL CORPORATION
Price: 219.0 INR
Availability: InStock

Price 219.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Pieces

CS SWRF Flange Specification

Dimension (L*W*H)
As per Standard or Customized Inch (in)

Feature
Anti Corrosive, Durable, High Strength, Precision Design

Grade
ASTM A105, A350 LF2, A694 F42/F52/F60/F65/F70

Application
Oil & Gas, Petrochemical, Power, Construction, Engineering, Water Treatment

Purity
Industrial Grade

Product Type
Pipe Flanges

Material
Carbon Steel

Standard
ANSI

Shape
Round

Surface
Black, Painted

Connection
Male

Technics
Other

Pressure
Class 150 to 2500 PSI

Size
1/2 to 24 (DN15 to DN600)

Color
Black

Temperature Range
-29C to 500C

Ends
Butt Weld

Weight
Depending on Size and Standard

Tested
100% Radiography & Ultrasonic Tested

Tolerance
As per Standard Specification

Hardness
130-180 HB

Supply Condition
Heat Treated (Normalized/Quench & Tempered)

Coating
Anti-Rust Oil, Black Paint

Packaging
Wooden Cases, Pallets, or As Required

Face Type
Raised Face (RF)

CS SWRF Flange Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About CS SWRF Flange

A flange is a forged or cast ring-shaped, flat, disc-like component used to connect pipes, valves, pumps, and other equipment to form a secure, leak-proof, and easily accessible piping system. They allow for efficient assembly, disassembly, cleaning, or modification without cutting.

Key Aspects of Flanges

Connection Method: Flanges typically connect in pairs using bolts, usually with a gasket inserted between them to provide a tighter seal.
Purpose: They secure pipes to components, facilitate maintenance, and permit inspection.
Key Types:
- Weld Neck (WN): Features a long tapered hub, ideal for high-pressure/temperature scenarios.
- Slip-On (SO): Slips over the pipe, allowing for easy placement before welding.
- Blind: Used to block or seal the end of a piping system.
- Threaded: Connected via threads rather than welding, useful in specific utility, low-pressure applications.
- Socket Weld: Suitable for smaller, high-pressure piping.
Facing Types: Common faces include Raised Face (RF) for high pressure, Flat Face (FF) for low pressure, and Ring Type Joint (RTJ) for extreme conditions.
Standards: They follow standardized dimensions, such as ASME/ANSI B16.5, ensuring compatibi

Flanges are widely used in industrial applications, including water lines, oil and gas, and chemical processing.

High-Performance Material and Specifications

Designed from premium carbon steel grades such as ASTM A105, A350 LF2, and A694 series, these SWRF flanges ensure remarkable hardness (130-180 HB) and durability. Produced with strict adherence to ANSI standards, their surface is treated with black paint or anti-rust oil for enhanced protection. Available in a size range from 1/2" to 24" (DN15-DN600), every flange is meticulously tested and supplied heat-treated for exceptional strength and performance.

Reliable Testing and Supply Condition

All CS SWRF flanges undergo rigorous quality assurance, including full radiography and ultrasonic inspection. The flanges are supplied either normalized or quenched & tempered, ensuring they meet or surpass industry demands for pressure and thermal cycling. Secure packaging in wooden cases, pallets, or as required by the customer ensures product integrity during transport and storage.

FAQ's of CS SWRF Flange:

Q: How is the CS SWRF flange tested for reliability?

A: Each CS SWRF flange is subjected to 100% radiography and ultrasonic testing. This comprehensive testing regimen ensures structural integrity and optimal performance under demanding operating conditions.

Q: What benefits do Raised Face (RF) and Butt Weld ends provide?

A: The Raised Face (RF) design allows for superior sealing with gaskets, while Butt Weld ends enable strong, leak-proof pipe connections, which are crucial for high-pressure and high-temperature applications.

Q: Where are these CS SWRF flanges typically used?

A: These flanges are widely applied in industries such as oil & gas, petrochemical, power generation, construction, engineering, and water treatment, where durability and corrosion resistance are priorities.

Q: What standards govern the manufacturing and tolerance of these flanges?

A: Manufacturing and tolerances adhere to ANSI standard specifications, ensuring compatibility and reliability across various piping systems. Dimensions and tolerances can also be customized based on specific project requirements.

Q: What process ensures the anti-corrosive properties of the flanges?

A: The flanges are coated with anti-rust oil or black paint after heat treatment, providing robust protection against corrosion and extending service life even in challenging environments.

Q: When is customized packaging available for these flanges?

A: Customized packaging, such as specific wooden cases or pallets, can be arranged as per customer requirements for safe transportation and storage.

Q: What is the typical usage temperature and pressure range for these flanges?

A: These flanges are engineered to perform reliably across a wide temperature range from -29C up to 500C, and handle pressure classes from 150 to 2500 PSI, making them versatile for various industrial applications.
